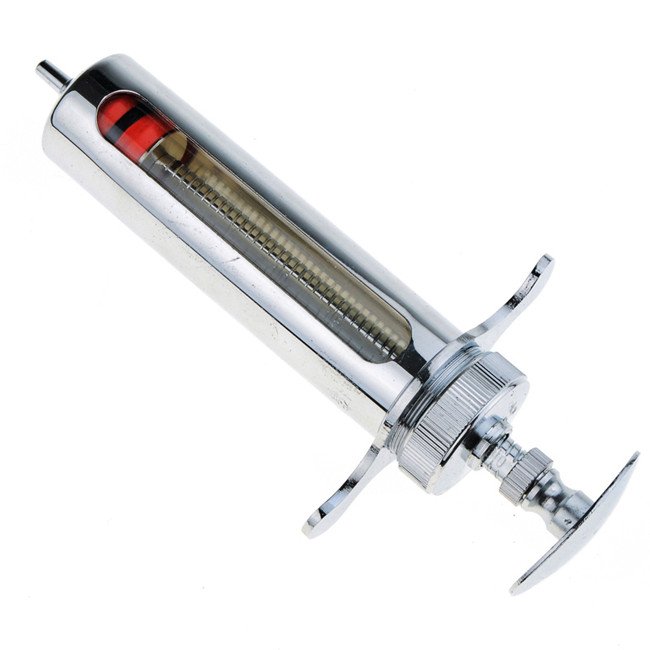

30ml Veterinary Instrument Reusable Poultry Syringe Veterinary Metal Syringe

Product Description

30ml Veterinary Instrument Reusable Poultry Syringe Veterinary Metal Syringe



Specification:

·Luer-lock adaptor

·brass raw material with chrome plated

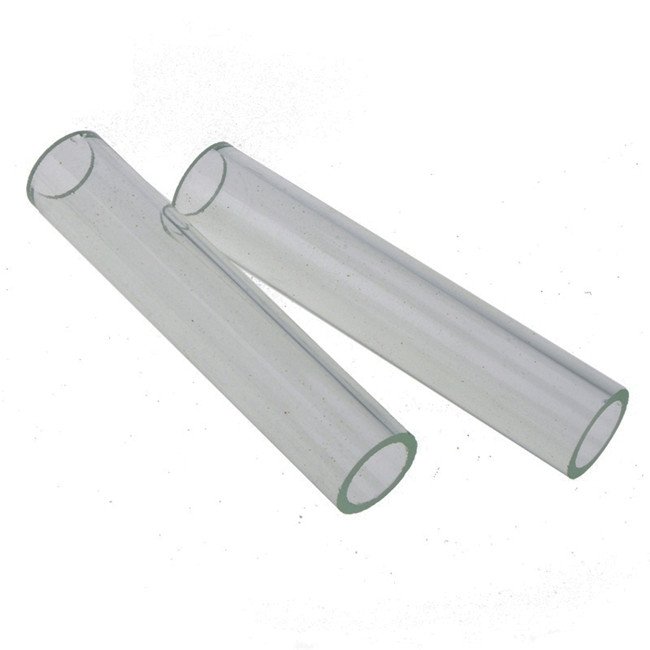

·Glass tube easy for cleaning

·Adjustable rubber piston rod

·Shockproof packaging with instruction paper

·Very easy to handle



Features

* Designed of one-hand operation, easy to disassemble and clean.

* Copper rod, long work life

* Automatic screw lock, can adjust the dosage according to need



Description

This metal veterinary syringe is used for animal vaccination and treatment injection.

This metal veterinary syringe adopts high advanced technology and special material, with light weight, heat resistance, simple structure, not easy to break.



Use Installation Steps:

Receiving check whether the product is defective or out of stock
Unscrew the glass tube fixing screw
Take out the glass tube and the heart(be careful to drop it)
Screw on the clamping handle
Reinstall the glass needle tube
Tighten the piston adjustment handle
Adjust the capacity adjustment screw according to the demand
After installation and inspection, install the needle

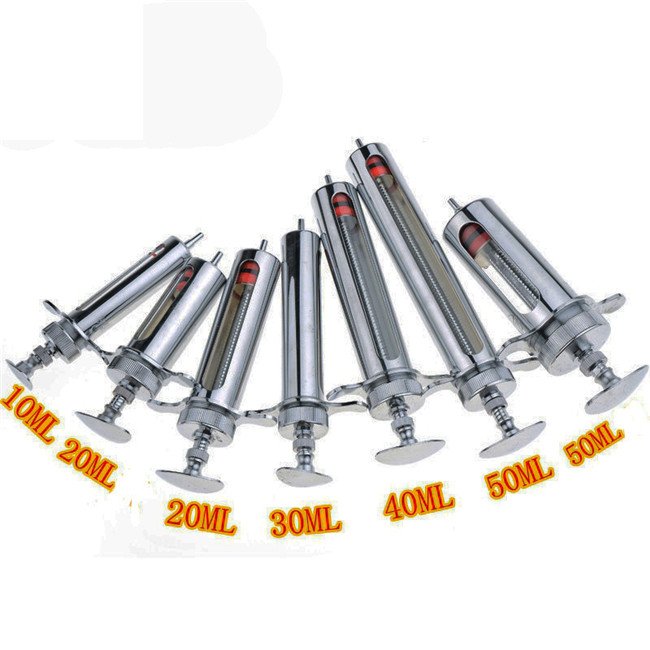

Product Parameter:





Capacity Overall length Cylinder Length Syringe outer diameter Glass tube diameter
10ML 13CM 9.5CM 21.4MM 13.8MM
20ML 16CM 12.3CM 24.4MM 16.6MM
20ML(short type) 13CM 9CM 28.2MM 20.6MM
30ML 15CM 11.2CM 28.2MM 20.6MM
50ML 21CM 17CM 28.2MM 20.6MM





Product Show
