High Pressure Animal Pig Waterer – Piglet Water Drinkers & Automatic Farm Water System for Pigs
Features:
G-1/2″ Thread (European pipe thread) or NPT-1/2″ (American pipe thread) is favorable.
Body length 50mm.
Pressure cone diameter 13mm.
Weight 51g.
With diameter 5mm pin.
Adjustable plastic filter with stainless steel netting.
Adjustable plastic filter is easy to change high pressure water systems and low pressure water systems.
NBR 90 O-ring is permanent and protect leaking.

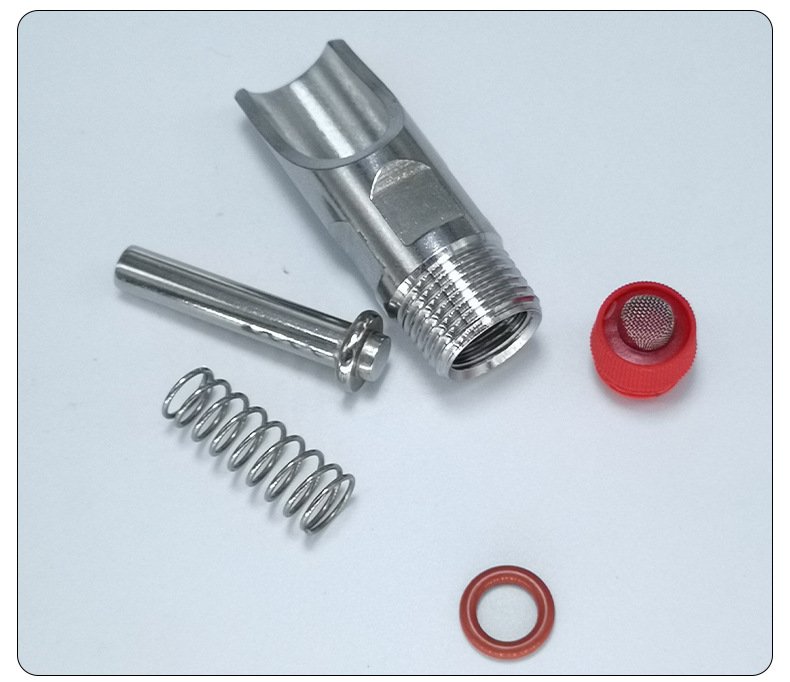

Animal pig nipple water drinker consists of valve body, valve plug, sealing ring, return spring, corking, sieve, etc. The valve body and valve plug are made of brass and stainless steel, the return spring and corking are made of stainless steel, and the sieve is made of engineering plastics. The overall structures are simple and corrosion-resistant.
Working Process of animal pig Nipple water drinkers
When pig wishes to drink, they hold the drinker in its mouth and bite the valve rod to let the water go through the gap of the valve plug and sealing ring. When pig stops biting, the return spring will haul back the valve rod, and the gap is sealed again to stop the water flowing. This kind of drinker has good sealed performance and slow water flowing, convenient for pig to drink.
Application of animal pig Nipple water drinkers
There’re two kinds of duck-billed pig drinker, the small one with flow of 2-3L/min, and the big one with flow of 3-4L/min. The small one is suit for piglet, and the big one is suit for fattening pig and adult pig.
Installation of animal pig Nipple water drinkers
The angle of installation is 45º or horizontal, and the terrain clearance depends on pig’s weight. The pig waterer should be installed in defecation area, which is away from pig’s resting area. The pig water drinker needs to be checked regularly, clean the dirties, adjust and strength the screws. The component should be changed timely if there’s any malfunction.
